Rotary vane pumps

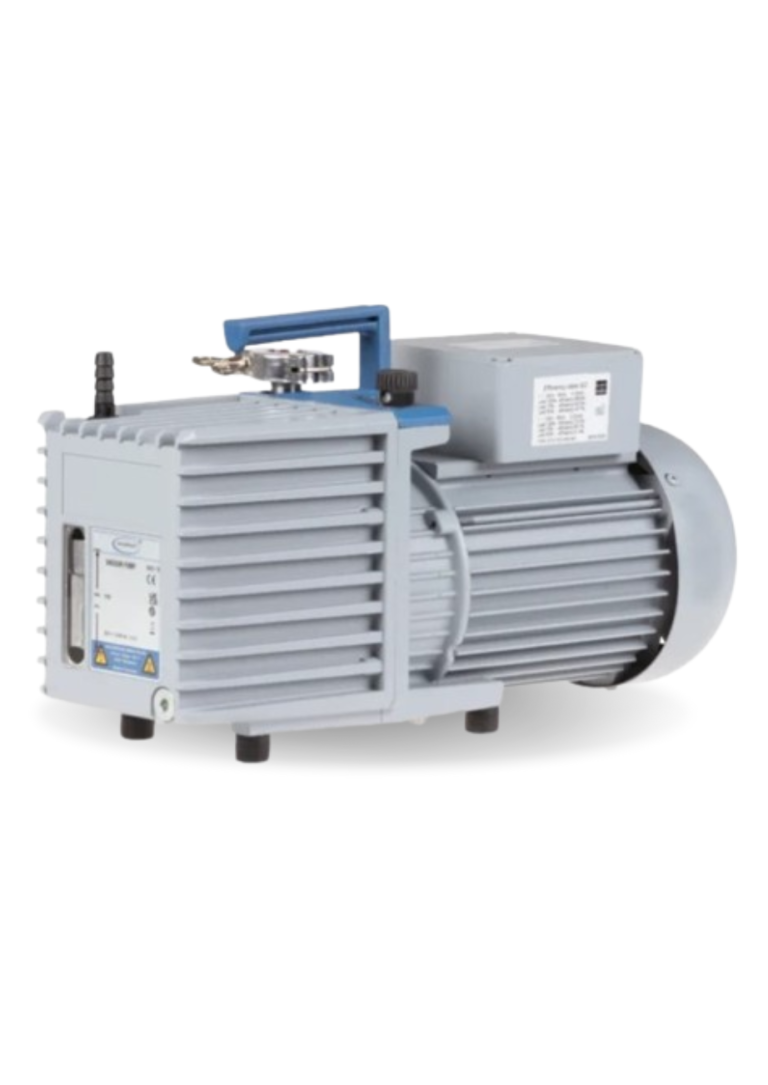

The one-stage pumps RE 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. Typical applications are lyophilization, fine vacuum distillation and evacuation of small volumes, e.g., for utilization of µ-focus x-ray tubes or filling with pure gases.
Key Features
High flow rates even at vacuum levels approaching ultimate vacuum
Very good ultimate vacuum even with gas ballast
Vacuum-tight at switch-off; external anti-suckback valve not needed
Large oil volume: Long intervals between oil changes
Ease of maintenance due to telescopic design
Ultimate vacuum: 3 x 10-1 mbar
Ultimate vacuum with gas ballast: 8 x 10-1 mbar
Max. pumping speed 50 Hz: 2.3 m3/h
